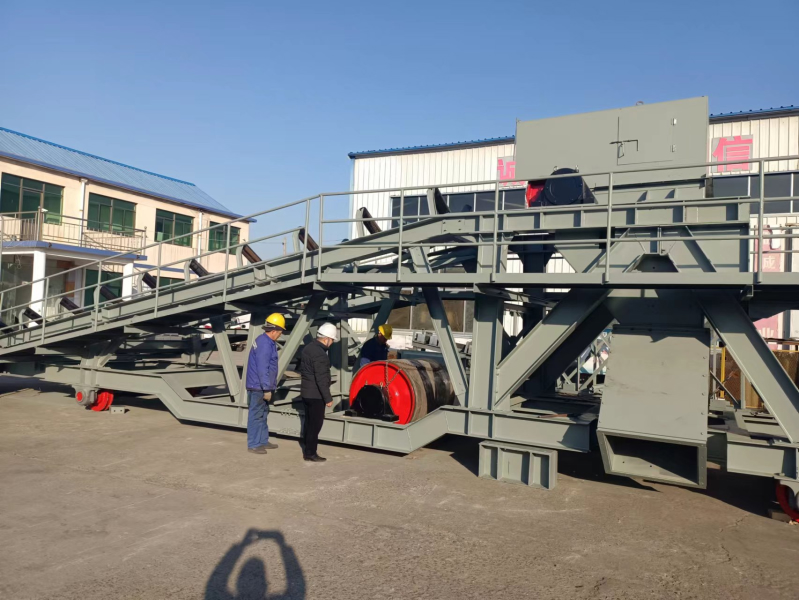

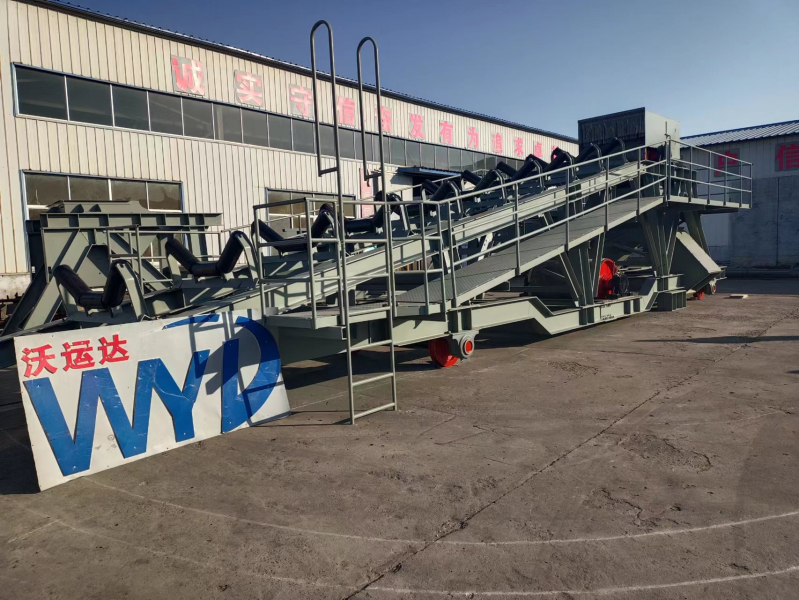

Belt Tripper Tripper Car Material Discharge Car DTIIA Type Tripper
Overview:
Belt conveyor trippers discharge materials at any horizontal point for flexible distribution. Rail-mounted for easy movement, they enable single/dual-side discharge. Configurable as three-way (center/sides - non-simultaneous), two-way (sides or center/single-side), or single-side discharge. Compatible with TD75, DTII, and DTIIA main conveyors.
Working Principle:
Heavy-duty trippers work with various belt conveyors handling different materials. Material elevation adjusts based on repose angles before discharge through center/side chutes controlled by gates/flap valves. The belt redirects via drums while the tripper moves along rails for multi-point discharge.
Structure & Features:
Comprising drive platform, conveyor frame, drums, equalizing beam, rail clamps, buffers, flap valves, chutes, dust control, and electrical systems. Key advantages:
1. Precise Positioning: Advanced PLC + rotary encoder for accuracy.
2. Smooth Operation: PLC/encoder technology ensures stability.
3. Optimized Structure: Six-wheel equalizing beam reduces wheel load and vibration.
4. Superior Sealing: Fully enclosed head/chute design with optional dust collector prevents pollution.
5. Simple Operation: Low running costs improve economic efficiency.
