Structural Features

Roller body precision-manufactured from high-quality welded tubing, strictly screened for dimensional tolerance. Axles made from cold-drawn round steel, bearing housings feature stamped steel construction. Equipped with PDC triple-sealing system offering superior dust/water resistance exceeding national standards. Precision assembly ensures excellent load capacity, minimal radial runout, low rotational resistance, 15% weight reduction, and theoretical service life over 30,000 hours.

Structural Design

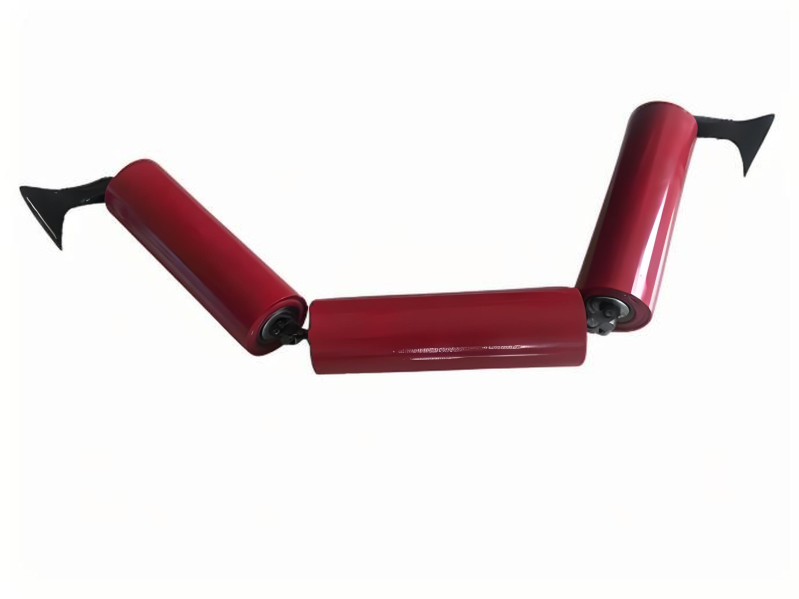

Three idlers hinged into a group via connecting plates forming a stable triangular structure, flexibly connected to conveyor stringers via hook-type suspension. Enables intelligent self-balancing: when belt misalignment occurs, load imbalance shifts idler angle on the offset side, generating corrective force via lever principle for automatic trajectory correction.

Performance Advantages

Strong corrosion resistance: withstands long-term erosion by acids, alkalis, salts.

Ultra-high wear resistance: Roller surface hardness ≥ HRC55, wear resistance index increased by 3x.

Triple sealing: Labyrinth seal + rubber oil seal combination ensures complete bearing chamber sealing.

Low-friction surface: Ceramic coating forms smooth oxide film, friction coefficient reduced by 40%.

Extended service life: 2-5x longer than conventional idlers, reduces belt wear.

Significant economy: Reduces downtime/maintenance frequency, lowers overall O&M costs by 35%.

Usage & Maintenance

Pre-installation: Check roller surface integrity, manually rotate to ensure no jamming.

Set spacing reasonably based on material properties (recommended: 1.2-1.5m).

Regularly inspect seal condition during operation, replenish special grease quarterly.

Avoid unnecessary disassembly of installed idlers to prevent structural accuracy loss.

Frequently asked questions

Frequently asked questions

Frequently asked questions

Frequently asked questions

Frequently asked questions

Frequently asked questions

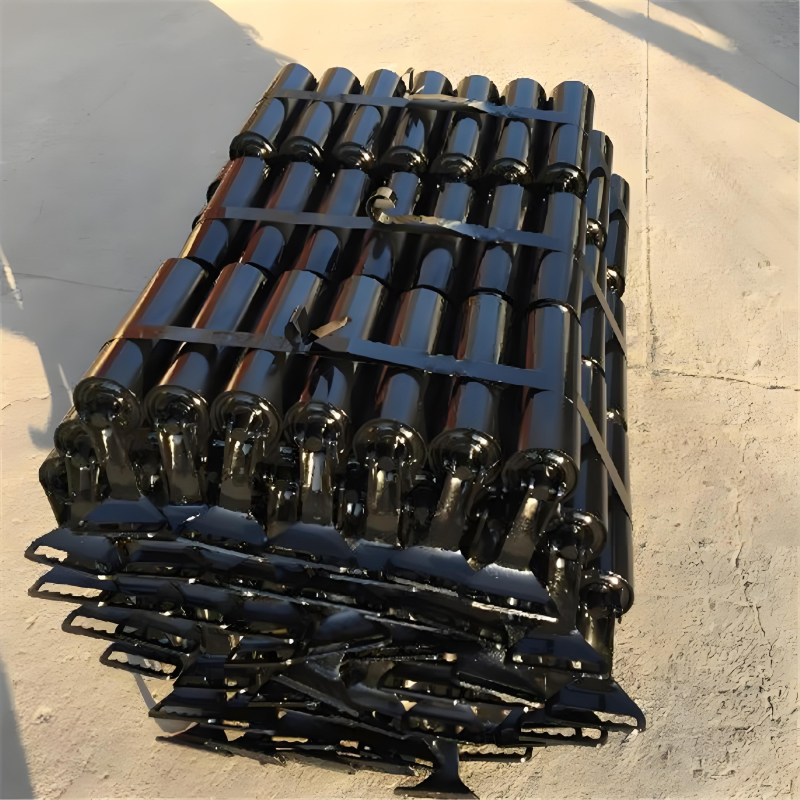

Packaging and transportation
