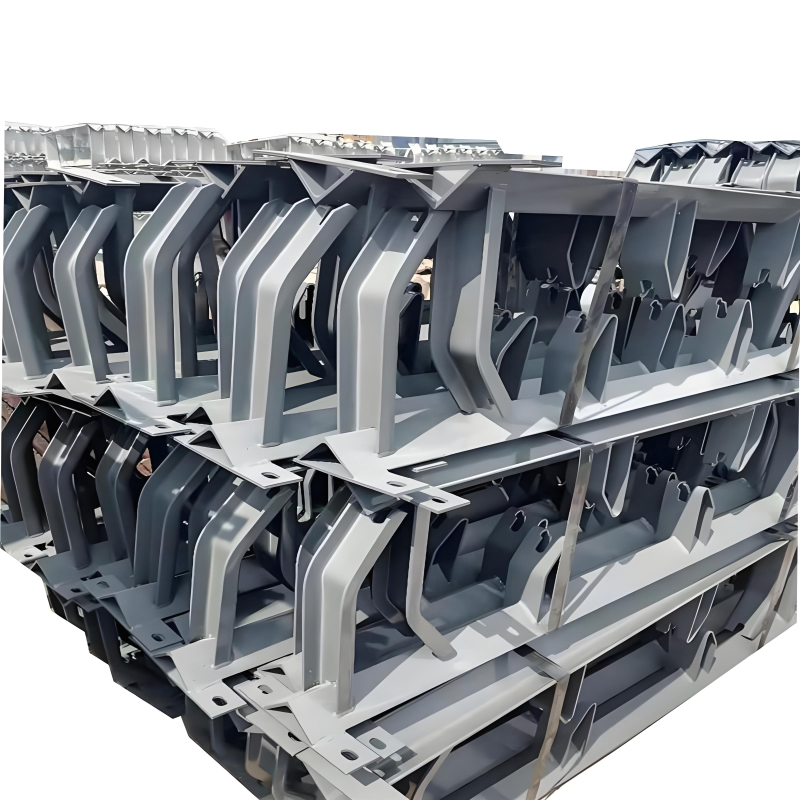

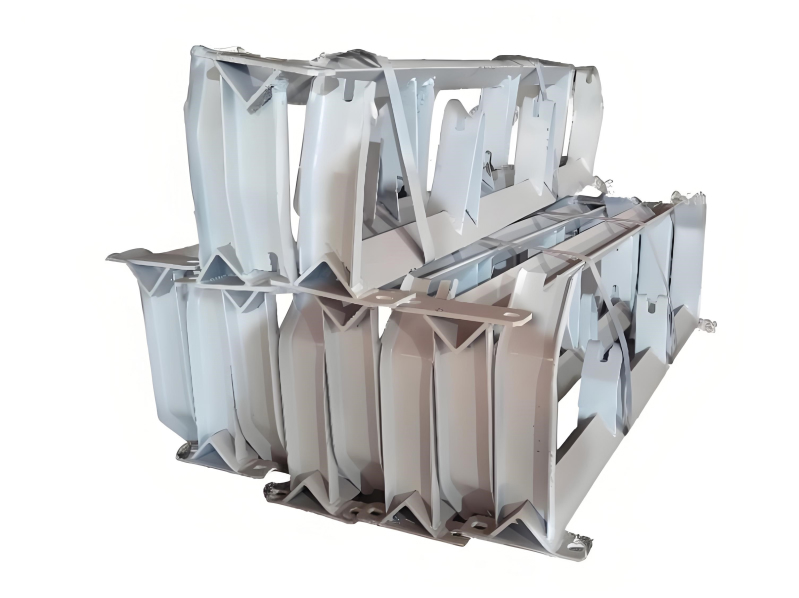

Product Overview

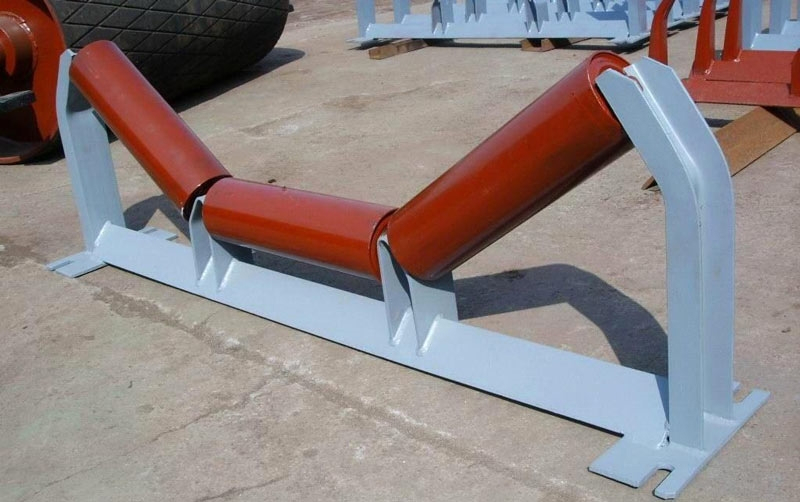

Core support component for mining belt conveyors. Unique trough structure forms belt into U-shape, boosting efficiency while reducing drift and spillage. Ensures stable operation in harsh mining, coal, and metallurgical applications.

Features

High Strength & Durability

Premium alloy/hot-rolled steel with heat treatment resists impact, compression, and deformation. Surface treatments (galvanizing/painting) prevent corrosion in humid/dusty environments.

Optimized Design

Scientific trough angles (30°/35°/45°) balance material load and belt tension, reducing resistance and energy consumption. Modular assembly enables quick maintenance.

Stability & Compatibility

Precision positioning holes and adjustments ensure accurate alignment, preventing belt drift. Compatible with various idlers (φ89/φ108/φ133) and belt widths (B500-B2000).

Safety Features

Chamfered edges and anti-clogging structures prevent material buildup and equipment damage.

Applications

Underground coal/raw material transport, open-pit material transfer

Long-distance bulk handling at ports, power plants, cement plants

Steep-incline conveyors in complex terrains

Specifications

Material: Q235B/SS400 high-strength steel, stainless steel (optional)

Belt Width: 500-2000mm

Trough Angle: 30°-45° (customizable)

Load Capacity: Static ≥10kN, Dynamic ≥5kN

Temp Range: -30°C to +80°C

Advantages

Cost Efficiency: Reduces belt wear/energy consumption, lowering O&M costs by >20%.

Longevity: ≥5-year design life reduces part replacement.

Customization: Supports non-standard designs for special conditions.

Service Commitment

Technical selection guidance, installation support, and lifetime maintenance ensure seamless integration.

Frequently asked questions

Frequently asked questions

Frequently asked questions

Frequently asked questions

Frequently asked questions

Frequently asked questions

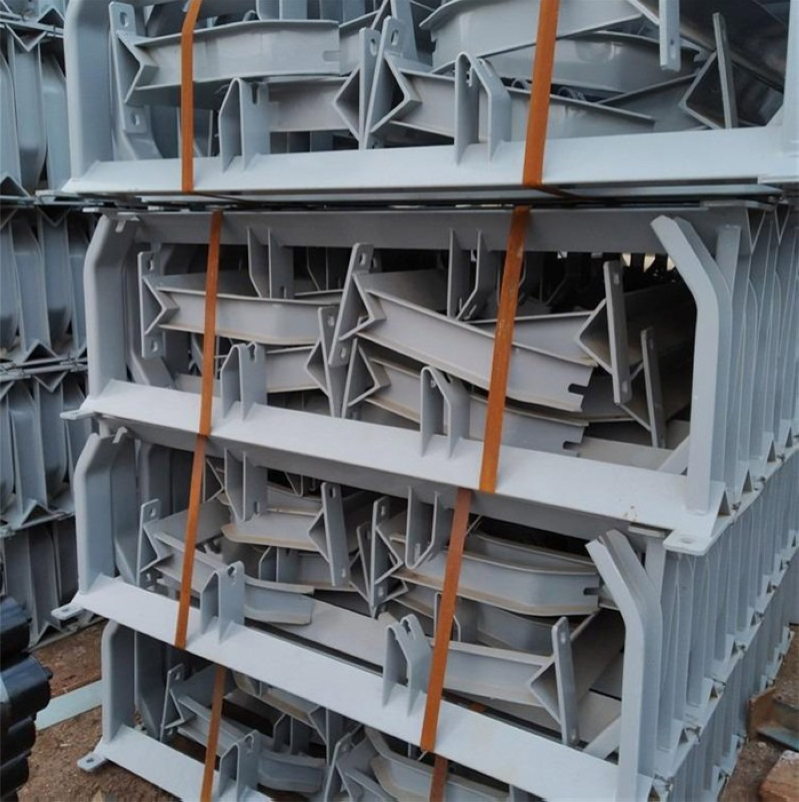

Packaging and transportation
