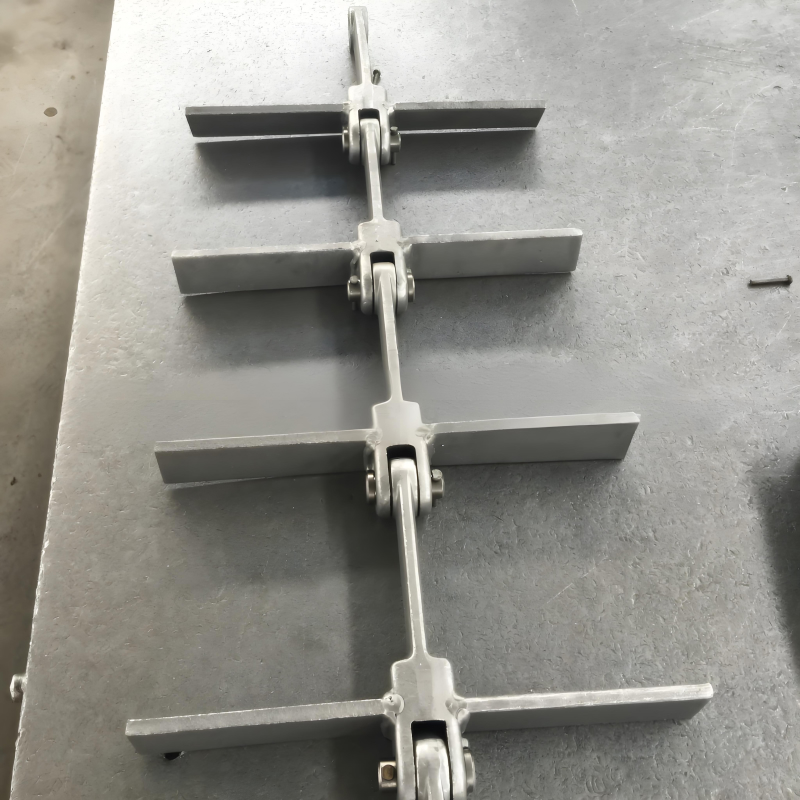

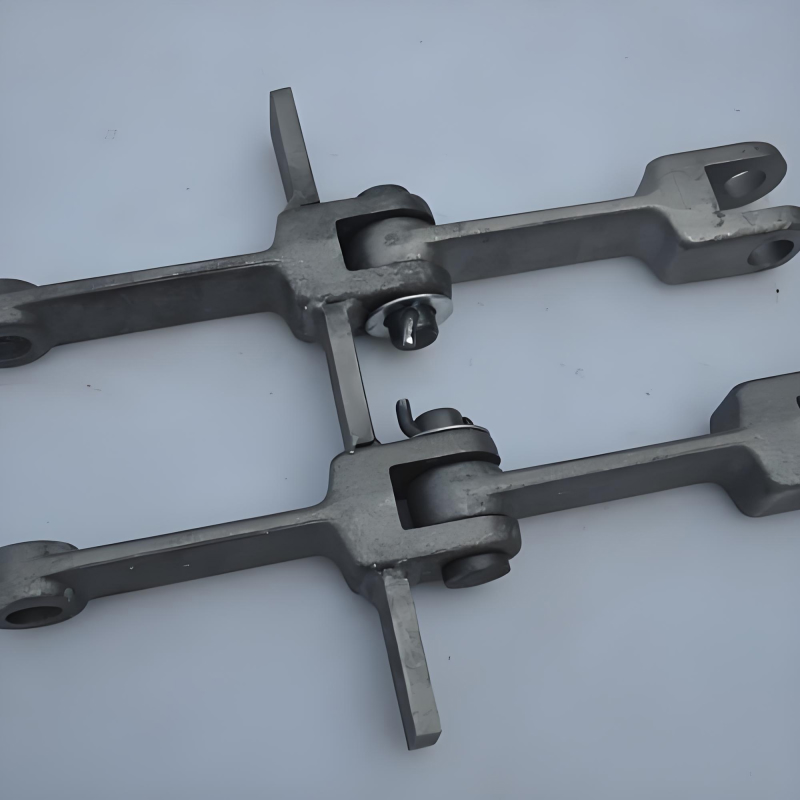

T-Type Scraper Chain / Ash Conveyor Chain

product features:

T-Type Scraper Chain
Ash Conveyor Chain
Drop Forged Chain
Heat-Resistant Chain

Send Iinquiry 0086-156-6810-9980

T-Type Scraper Chain Technical Parameters
Model	Width L (mm)	Height H (mm)	Pitch (mm)	Bore (mm)
12	105	25	100	14
14	120	25	100	14
16	140	25	100	16
	140	30	125	16
	140	35	125	18
18	160	36	125	18
20	180	36	100	18
	180	36	150	18
	180	36	125	18
25	220	40	125	18
	220	40	160	20
	220	50	160	20
	220	40	160	20
30	260	40	125	20
32	290	50	200	20
	290	50	160	20
	300	40	200	20
	300	50	160	20
	300	50	142	20
40	368	60	200	25
40	370	50	160	25
50	470	50	160	25
	470	50	142	25
	468	50	200	25
	480	60	200	25
60	570	50	160	25
63	585	60	142	25
70	660	60	142	25

Frequently asked questions
