With increasing demands for safety and economy in coal production, the performance of belt conveyors is gaining more attention. Especially the conveyor belt, as the core component, its protection is paramount. Traditional buffer idlers suffer from high maintenance, material jamming, and small impact surfaces. To address these challenges, our company developed a new generation buffer bed. It not only overcomes the shortcomings of traditional idlers but also provides a more efficient and economical solution.

Main Functions of the Buffer Bed:

Impact Reduction: Effectively absorbs the impact of falling material on the conveyor belt, reducing stress.

Increased Contact Area: Upgrades from traditional line-to-line contact to surface-to-surface contact, significantly increasing the force-bearing area and reducing material impact on the belt.

Uniform Force Distribution: Ensures even force distribution on the belt, preventing deformation and reducing material spillage.

Prevents Tearing: Effectively prevents longitudinal belt tears caused by material jams, extending service life.

Reduces Adhesion: Noticeable buffering effect reduces material sticking to the belt.

Significant Advantages of the Buffer Bed:

Contact Method Innovation: Transition from line-to-line to surface-to-surface contact drastically reduces belt damage.

Lowers Maintenance Costs: Uniform force design significantly reduces daily repair and maintenance expenses.

Minimizes Material Loss: Effectively eliminates material spillage and scattering caused by uneven force distribution.

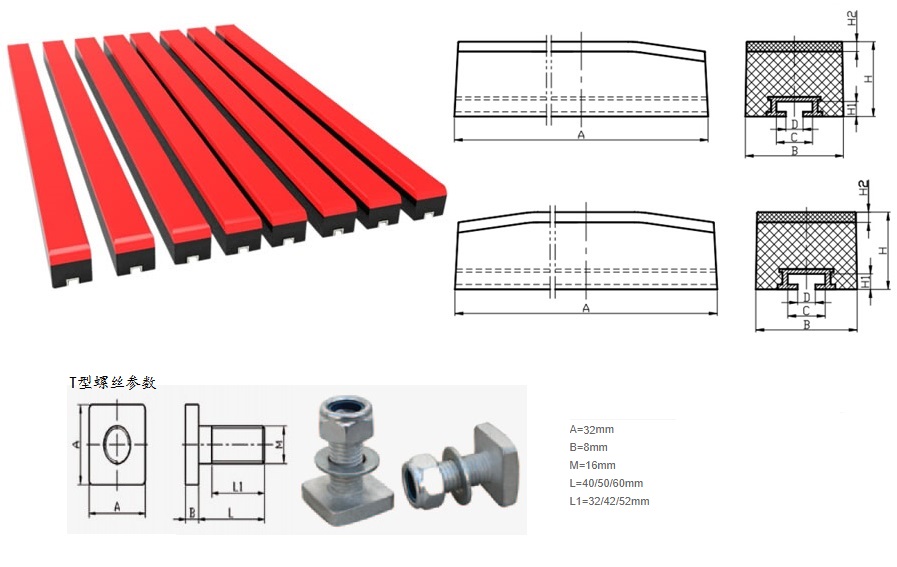

Smooth Operation: The arc design of the buffer strips ensures smooth and fluent belt movement.

High Elasticity Absorbs Impact: The elastic design of the buffer strips maximizes absorption of impact force from falling material.

Easy Installation & Maintenance: Simple installation, easy maintenance, and strong durability.

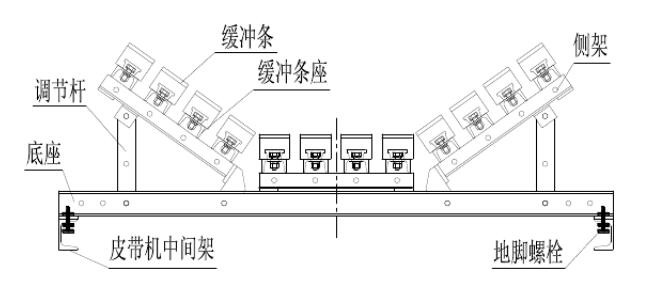

Installation Guide:

The buffer bed is mostly pre-assembled at the factory, making on-site installation simple and fast:

Hoisting and Positioning: Hoist the buffer bed onto the conveyor intermediate frame, ensuring it's directly below the discharge chute.

Secure Installation: Fix the buffer bed to the intermediate frame using anchor bolts on both sides of the base.

Adjust Trough Angle: Install adjustment rods and set the side frames to the required trough angle.

Our buffer bed design aims to provide you with a more reliable, economical, and low-maintenance conveyor belt protection solution. Choosing our buffer bed means choosing dual assurance for conveying efficiency and safety.
