Belt conveyor stringer pipes are key accessories on belt conveyors, primarily functioning to provide support and ensure stable belt operation.

Function and Role:

Stringer pipes withstand impact loads from falling materials. More idlers are required at loading points to disperse and reduce impact force, protecting the belt and pulleys.

Connecting with H-frames, stringer pipes effectively prevent belt deviation, ensuring normal conveyor operation.

Structure and Material:

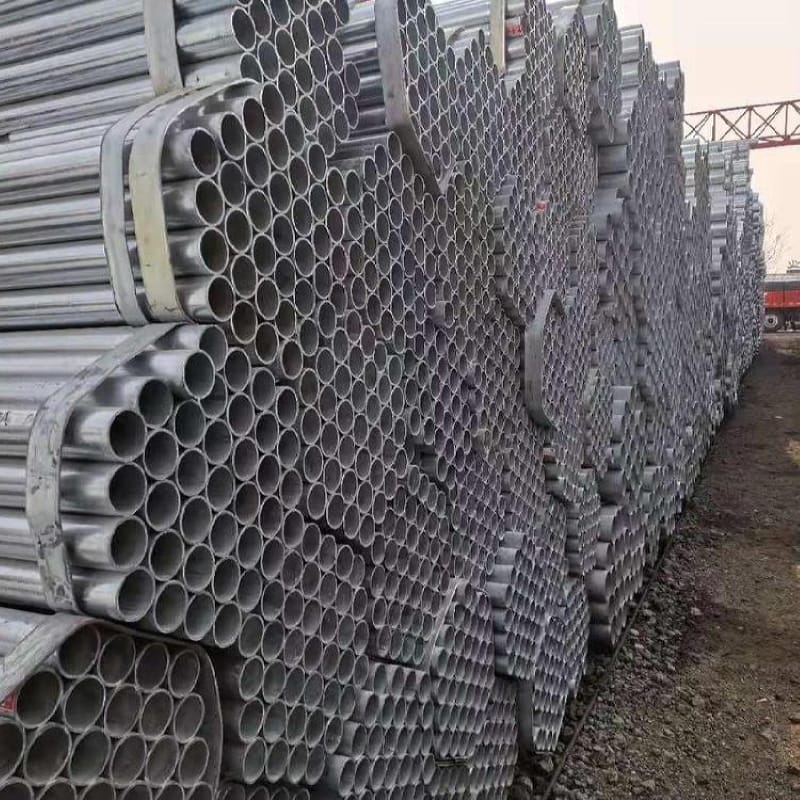

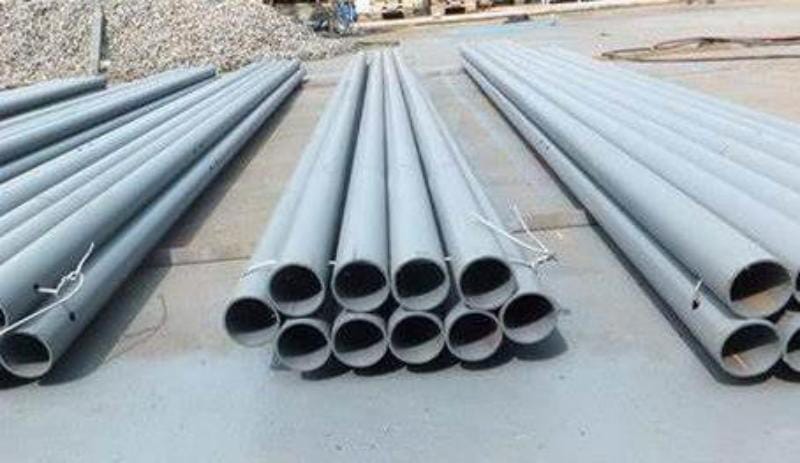

Stringers are typically formed by cutting and drilling 2" welded pipe, then painted for corrosion protection.

Length, diameter, and wall thickness of stringer pipes can be customized per customer requirements.

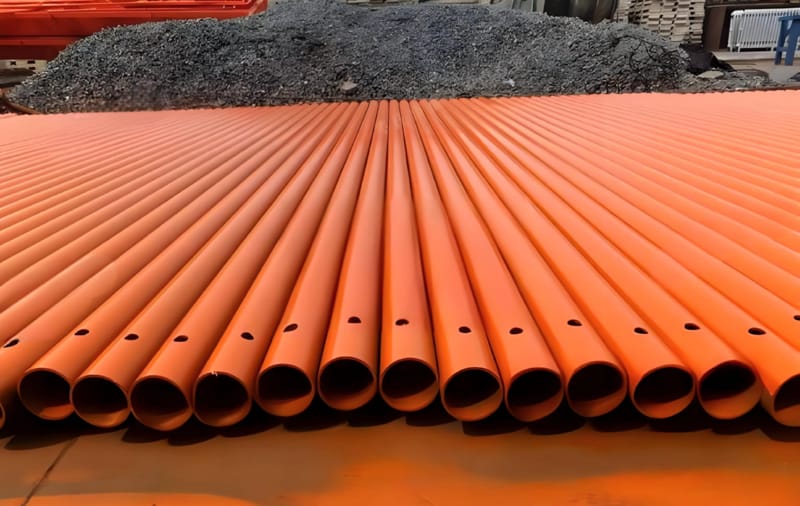

Common specification: 3m length with 6 holes. Special specification: 3m length with 12 holes.

Models/Specifications include Ф50×3 and Ф76×4.

Application:

Stringer pipes connect with H-frames and articulated idlers in underground belt conveyor lines, serving a supporting and connecting role.

Customization and Specifications:

Length, diameter, and wall thickness of stringer pipes can be customized per customer requirements.
