The XGZ cast stone scraper conveyor is suitable for material transportation in mining, metallurgy, coal mines, and chemical industries where moisture content requirements are not strict, handling materials with particle sizes below 300mm. Structural Features of XGZ Scraper Conveyor

1. Scrapers are welded from 16Mn wear-resistant steel plates, resistant to breakage, suitable for large-volume, large-particle material transport.

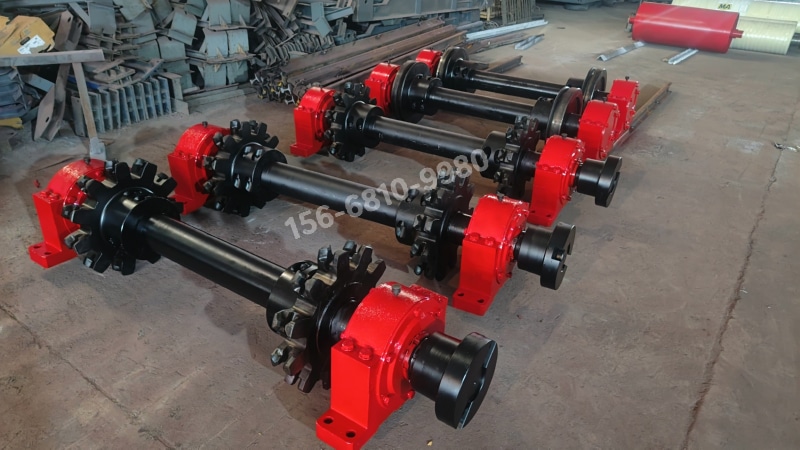

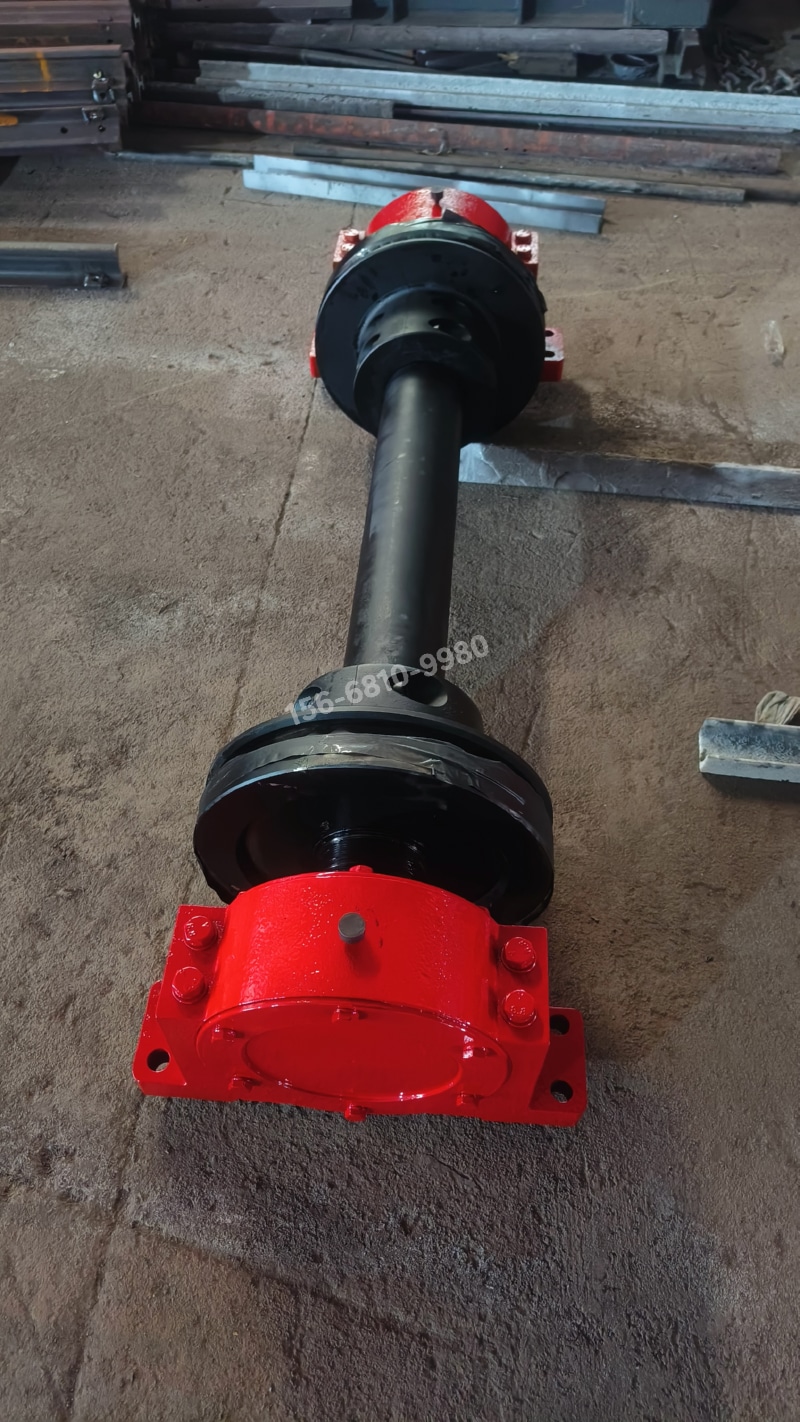

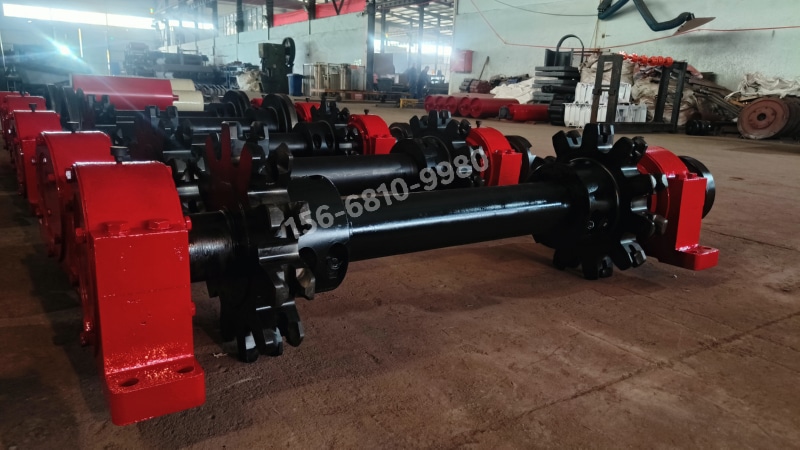

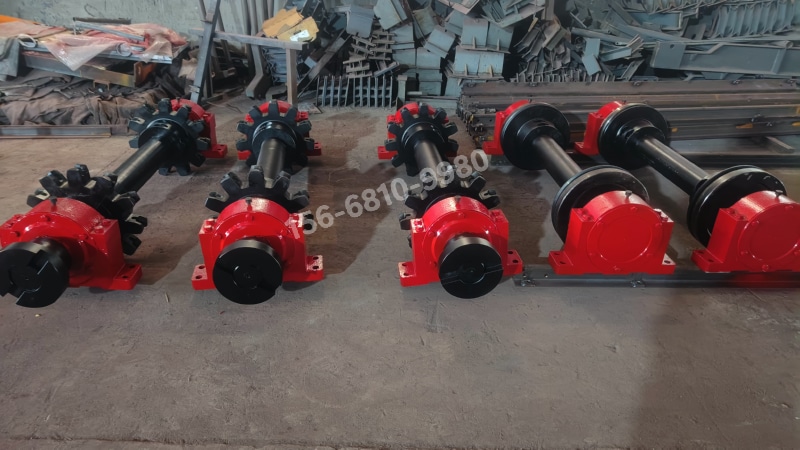

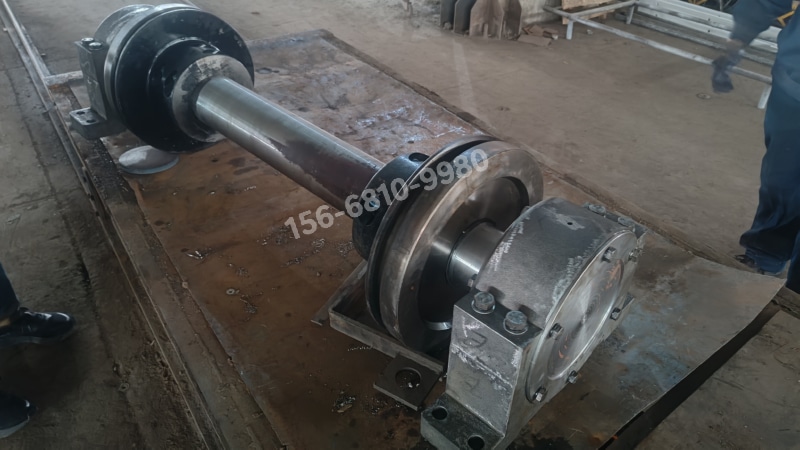

2. Head and tail shafts are forged from 40Cr material blanks, processed after tempering treatment, offering excellent mechanical properties.

3. Head frame, tail frame, and drive frame are made from 16Mn plates. After welding and stress relief, they are processed as a whole, ensuring strength, rigidity, precise positioning, stability, and longevity.

XGZ Scraper Conveyor Parameters

Model: XGZ-06, XGZ-08, XGZ-10, XGZ-12, XGZ-14

Capacity t/h: 100-300, 200-500, 300-600, 400-800, 500-1000

Chain Speed m/s: 0.48-0.76, 0.48-0.76, 0.48-0.76, 0.48-0.76, 0.48-0.76

Conveying Distance m: 6.7-64.3, 8.2-64.3, 8.6-43.6, 8.9-63.5, 8.6-53.6

Material Size mm: <300, <300, <300, <300, <300

Effective Trough Width mm: 600, 800, 1000, 1200, 1400

Scraper Pitch mm: 1024, 1024, 1024, 1024, 1024.
